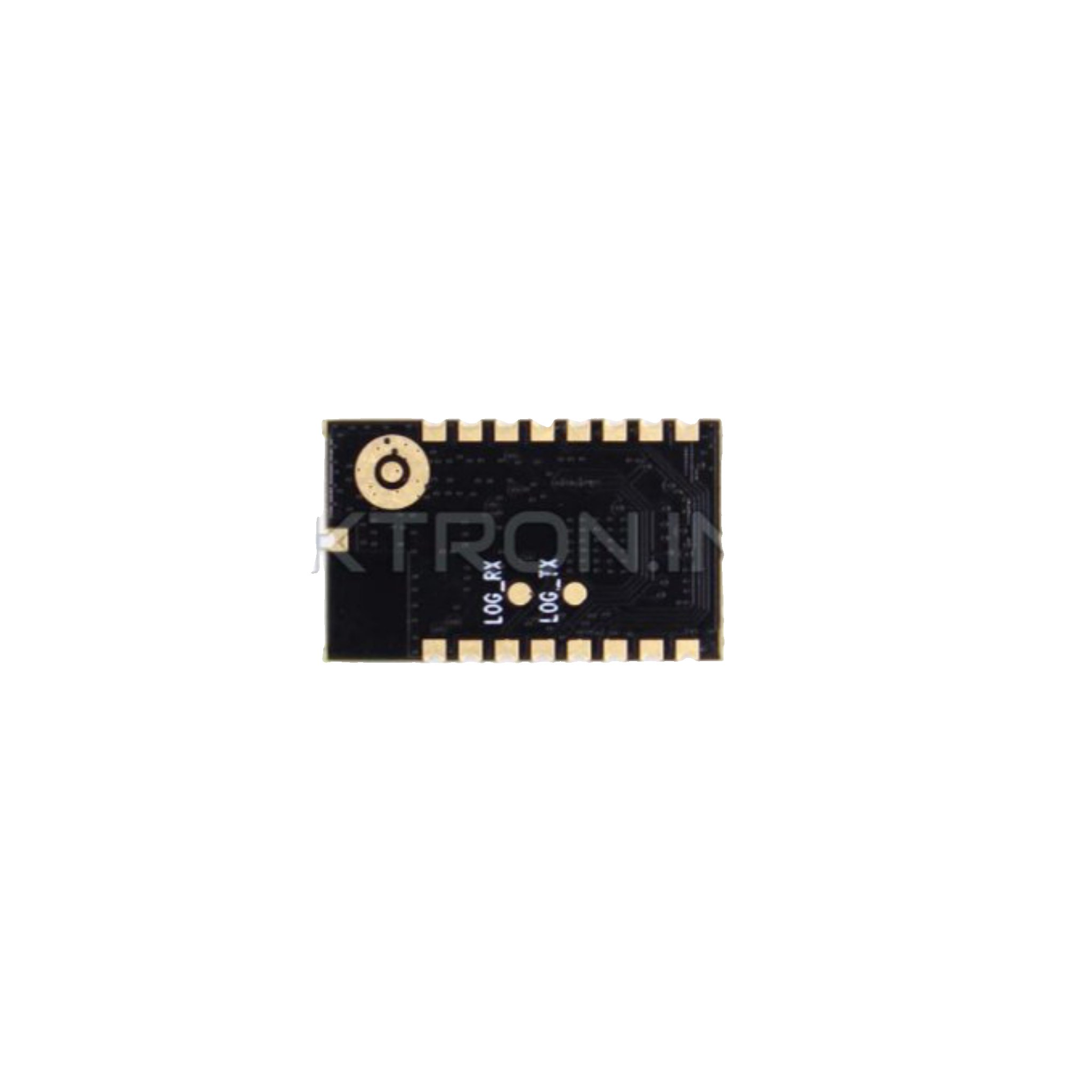

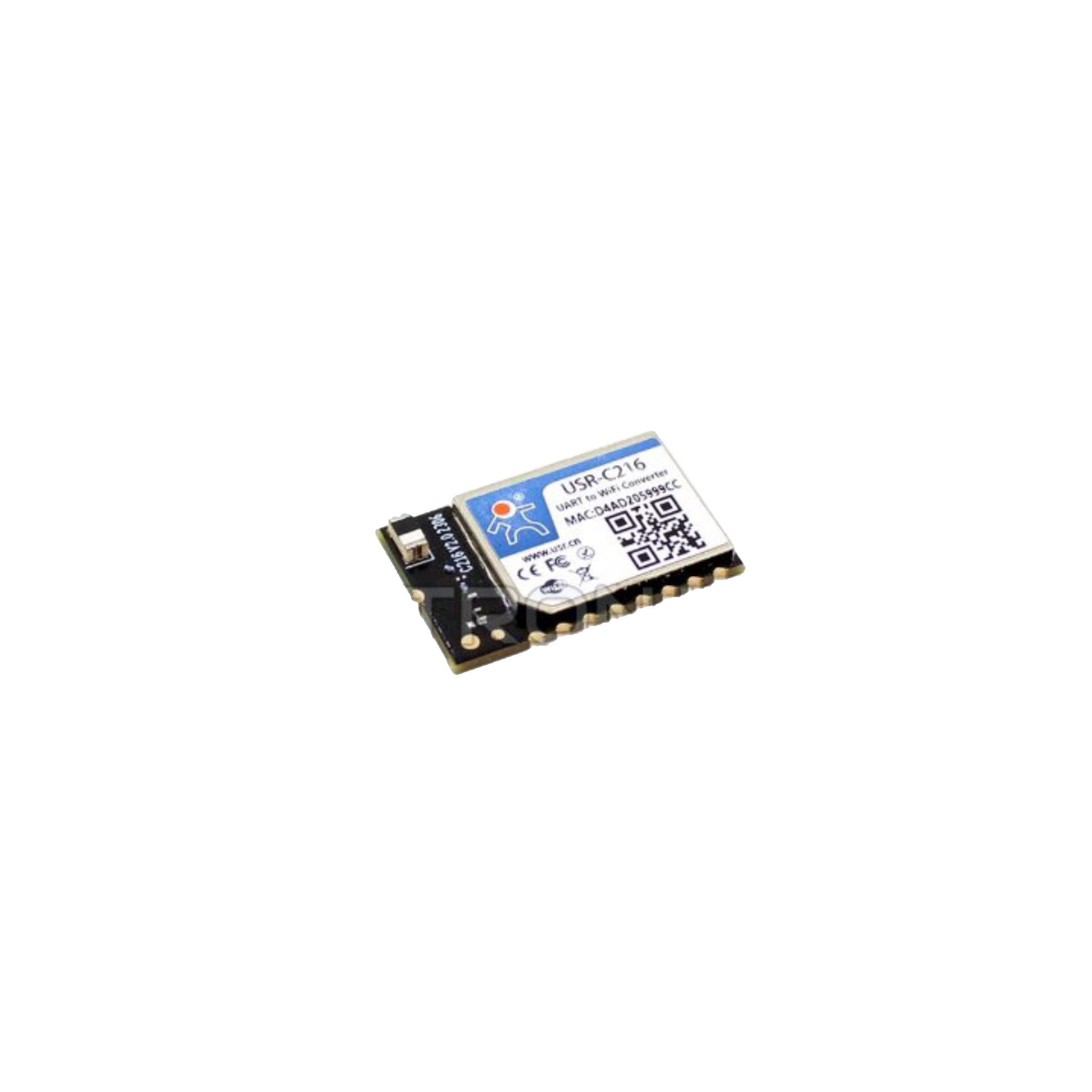

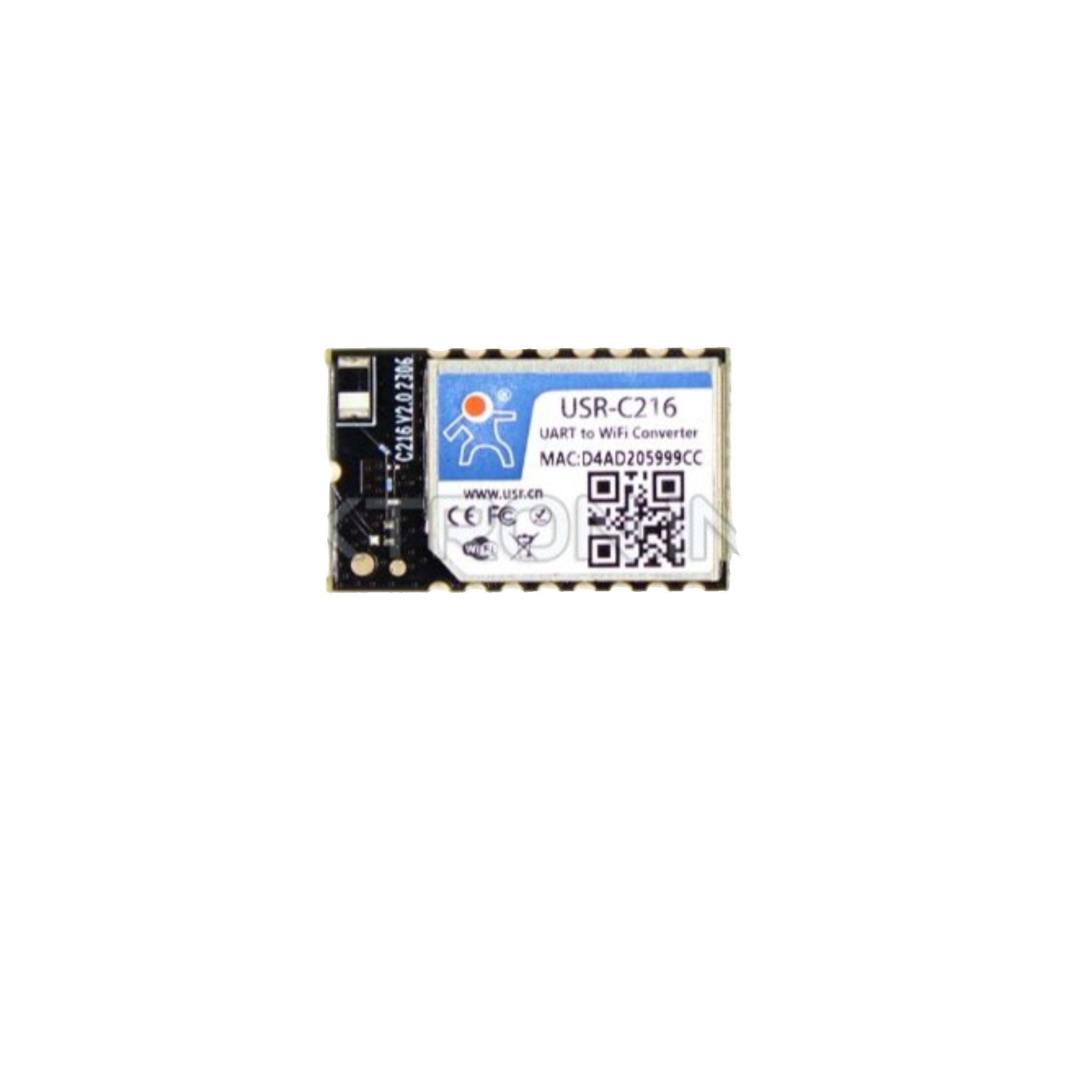

USR-C216 WiFi Module – UART to WiFi Converter

The USR-C216 WiFi Module is used for data transparent transmission. The hardware of USR-C216 Wi-Fi module integrates MAC, baseband chip and RF transceiver unit. USR-C216 supports Wi-Fi protocol and TCP/IP protocol. It can be used to realize UART device networking via simple configuration.

Features:

• SMT WIFI Module
• Support Wi-Fi@2.4 GHz 802.11b/g/n wireless standards
• Support WPA/WPA2 security mode.
• Support work as AP, STA, AP+STA mode
• The fully integrated serial to WiFi TCP/UDP transmission function, can choose multiple serial speed
• LAN search and wireless parameter setting function
• Support TCP/UDP Client registration packet mechanism
• Support Simplelink/usrlink rapid networking configuration
• Supports Httpd Client function
• Support class RFC2217 automatic baud rate adaptive function
• Support simple AT+ command set configuration
• 3.0V~3.6V power supply
• Ultra-low power
• On-board PCB antenna and external antenna optional
• Small size: 22.0mm x 13.5mm x 2.7mm
